Custom Line Planner & Equipment Configurator
Eliminate factory bottlenecks and reduce manual labor. Tailor-fit conveyor connections, vacuum loaders, and turnover machines designed specifically for your panel furniture workshop.
Intelligent Workshop Line Planner & Equipment Configurator
Select your workshop workpiece specs, existing machinery, and daily output. Our engineering system will automatically generate the optimal conveyor connection layout, required machine models, floor space requirements, and labor-saving ROI.
Primary Workpiece & Daily Output
Existing Host Machines in Your Factory
Main Bottleneck to Eliminate
Shunxin SX-370L Single-Operator U-Loop
Seamlessly attaches to your edge bander outfeed. Panels automatically loop back to the primary operator for 2nd/3rd/4th side banding with zero surface friction.
Request Official Quotation & CAD Drawing
Standard Automated Workshop Connection Models
Choose from three industry-proven floor layouts depending on your factory dimensions and machine orientations.
Single-Operator U-Loop
Parallel return line running alongside the edge bander. The outfeed air flotation table transfers panels onto the powered return belt directly back to the main operator.
• Min. Width Required: 2.8 meters
• Operator Headcount: 1 Operator

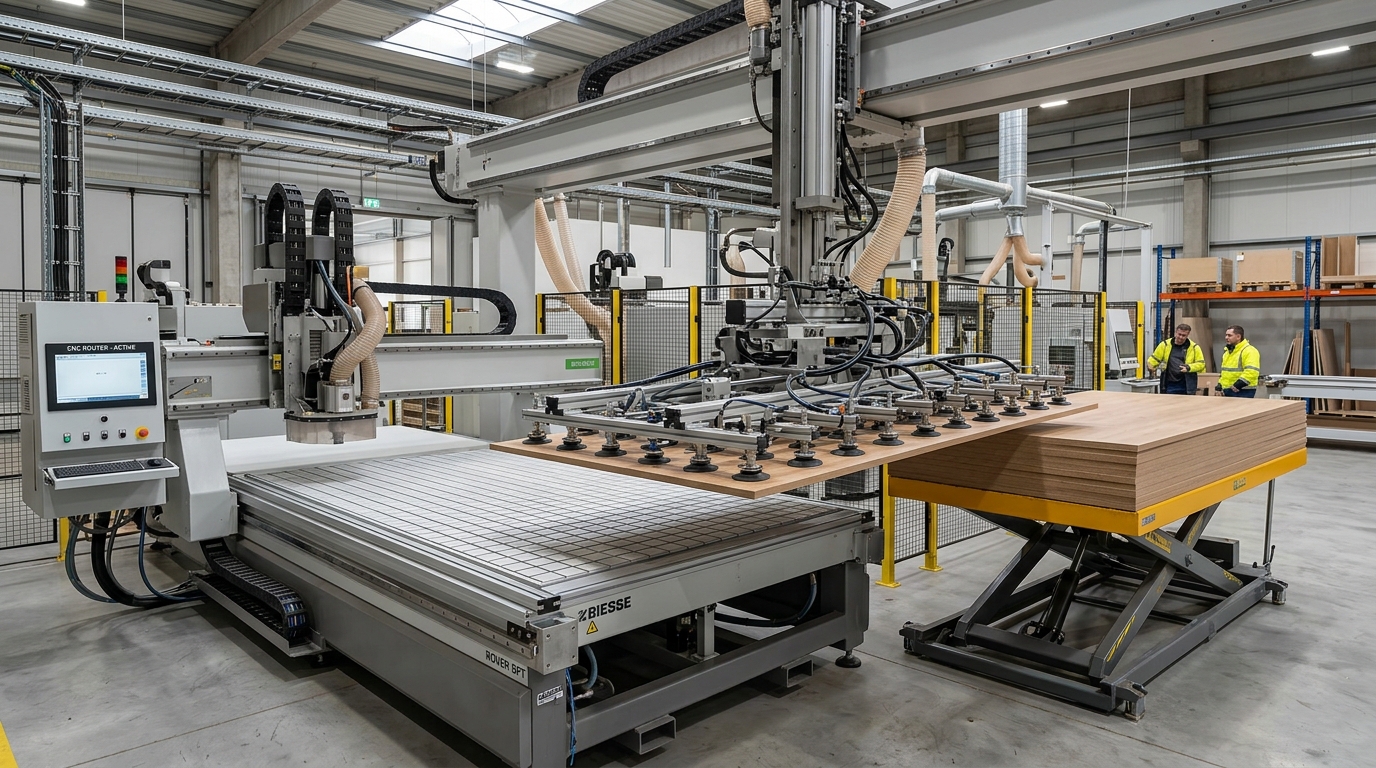

Nesting-to-Edgebander Linear Cell

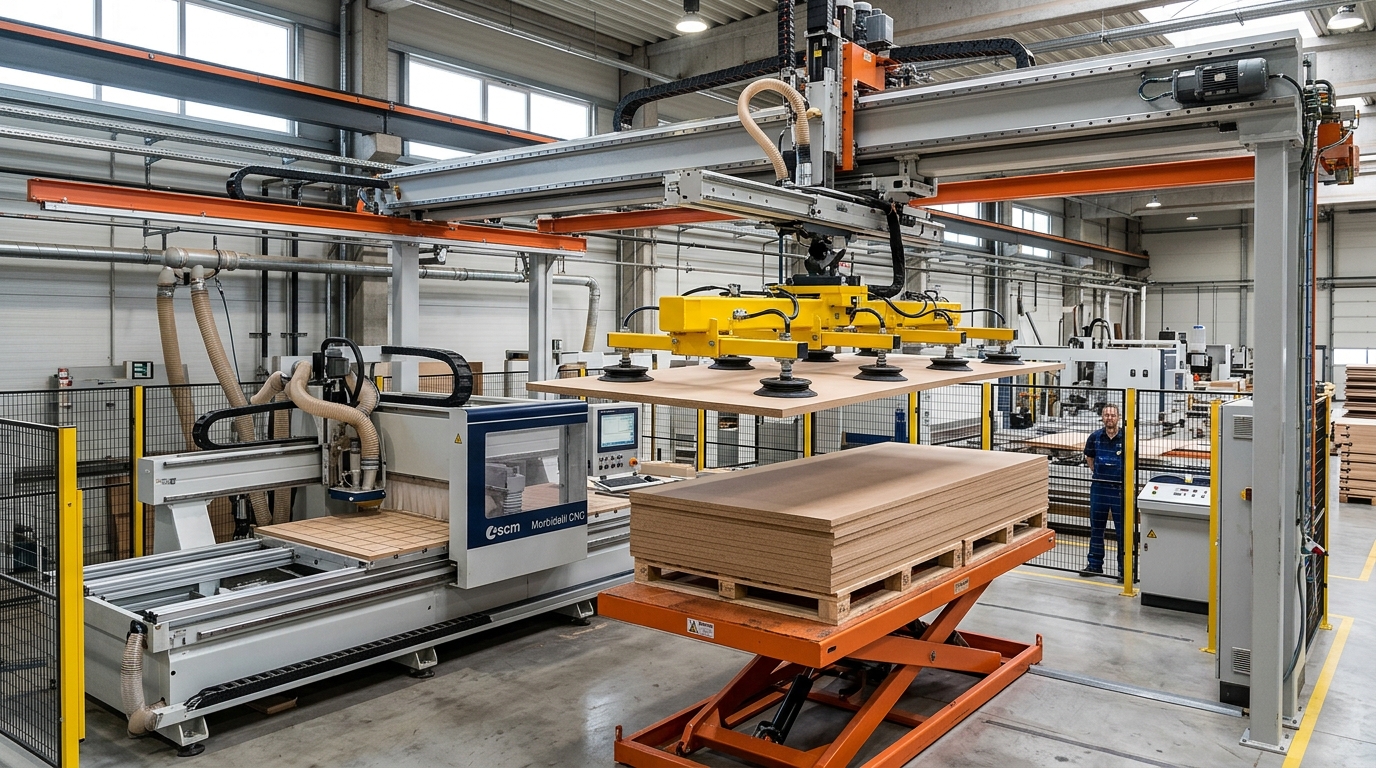

Two-station vacuum gantry loads full boards onto CNC nesting machines, while cut panels automatically discharge onto motorized sorting rollers directly feeding edge banders.
• Min. Length Required: 18.0 meters
• Cycle Time: 4.5 min / sheet
Automated Handling & Transfer Line
Automated rail-guided vehicles (RGV) shuttle stacks between cutting cells, double-side edge banders, and multi-axis 6-sided CNC drilling cells with central PLC coordination.
• Daily Output: 1,500+ panels
• Labor Reduction: 80% Automated
Turnkey Plant CAD Engineering Schematics
Real floor plans engineered by Shunxin for global clients. Every connection is tailored with precision buffer zones, safety clearances, and PLC-linked conveyors.

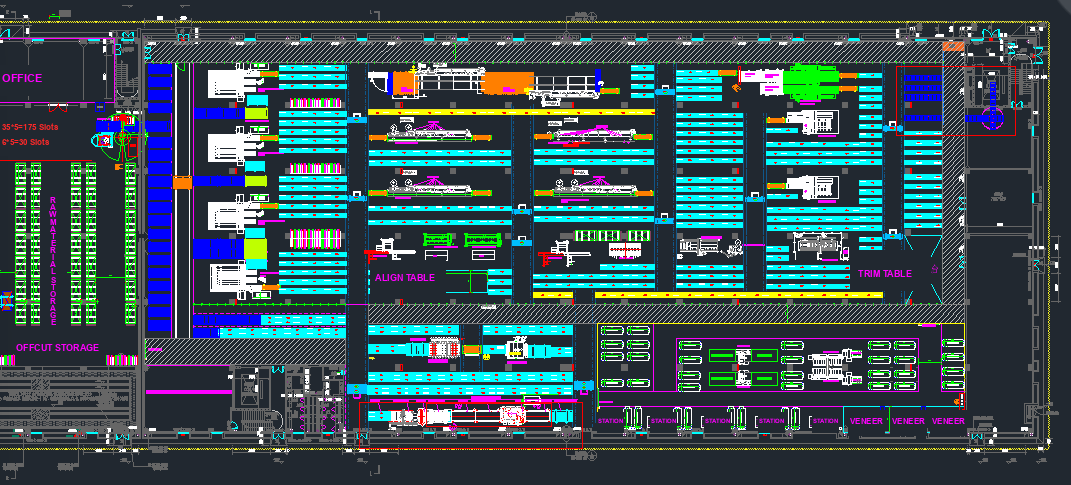

Full-Scale Custom Furniture Smart Factory
Integrated workflow from raw material automated warehouse, vacuum alignment table, precision edge-trimming lines, multi-station sorting buffer, and offcut recycling zone.

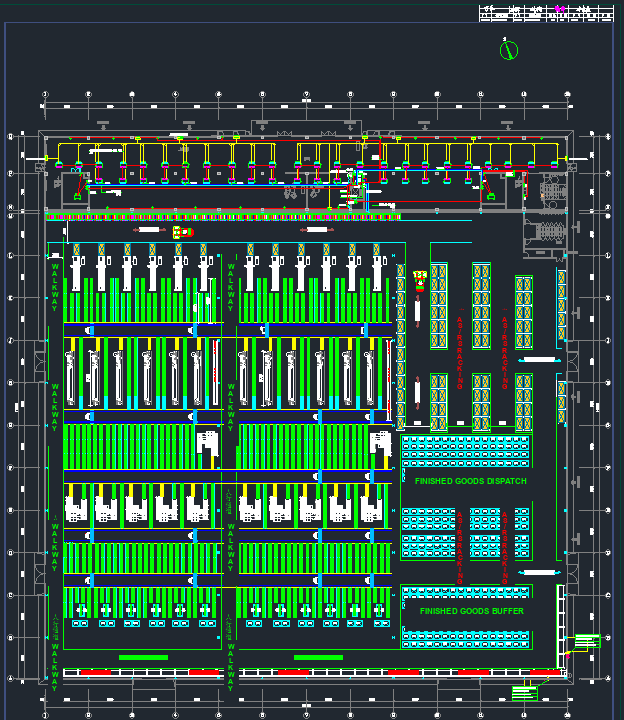

AS/RS High-Bay Racking & AGV Logistics Network
Automated multi-level raw board storage, automated guided vehicle (AGV) transfer corridors, safety walkways, and finished cabinet dispatch buffer.

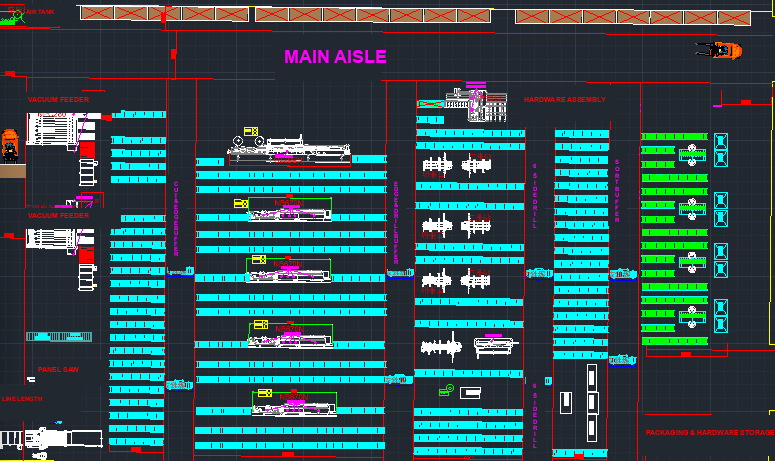

Cutting, Edgebanding & Drilling Workcell
Layout plan detailing NPC280 vacuum feeder, beam saw, panel buffer, edge-loop integration, and automated sorting conveyor directly feeding flatpack packaging.

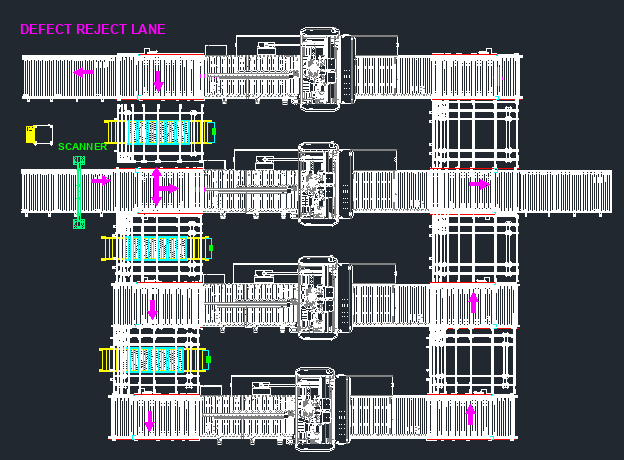

Barcode Sorting Roller & Defect Rejection Lane
Close-up engineering view featuring top barcode scanner station, bi-directional pop-up transfer belts, defect reject outfeed lane, and main packaging flow.
Compatible with 100% of Global Edge Bander & CNC Brands
All Shunxin return conveyors, lift platforms, and turnover equipment are designed with universal mechanical flanges, adjustable working height stands (880-950mm), and dry-contact PLC signal interfaces.
