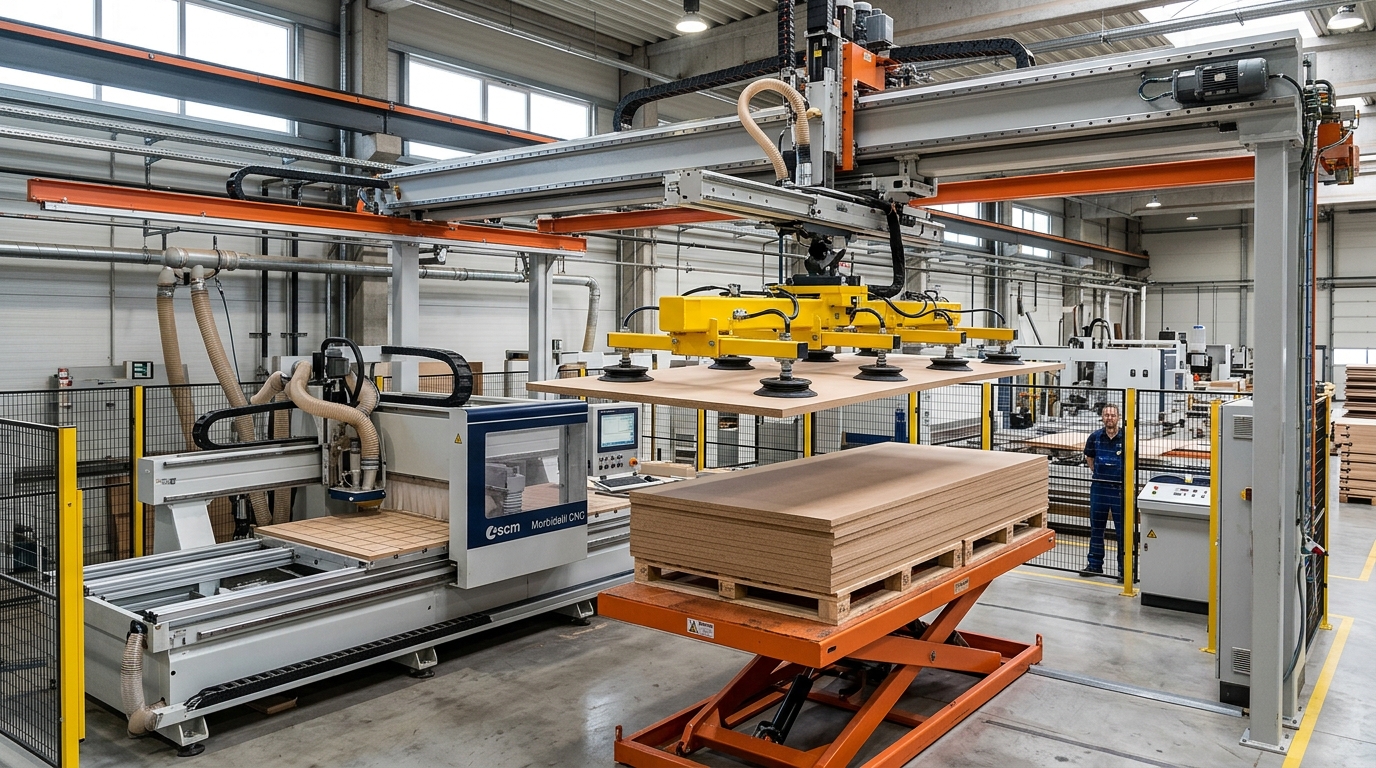

Automated Nesting CNC Loading & Infeed System
Integrated vacuum gantry sheet loading paired with hydraulic lift tables to keep CNC cutting machines running non-stop without operator waiting.
Traditional Workshop vs. Shunxin Automated Solution
Compare the real labor headcount, panel scratch risks, and daily throughput differences.
Manual Handling & High Scrap Rates
- ✗ Heavy manual loading causes operator back fatigue and slow cycle times
- ✗ CNC machines sitting idle for 2-3 minutes between cutting cycles
- ✗ Accidental sheet dropping and corner chipping during manual loading
Single-Operator Continuous Circulation
- ✓ Reduced to 1 single operator: Eliminates 2-3 manual board catchers.
- ✓ Zero Surface Scratching: Air cushion flotation suspends delicate PET/UV panels on micro air layer.
- ✓ Full ROI within 3-5 Months: Rapid payback through direct labor savings and scrap elimination.
How the Automated Production Cell Works
Hydraulic Stack Leveling
Scissor lift table maintains top sheet at optimal pick height automatically.
Vacuum Gantry Pick
Sponge suction matrix grips full MDF/Plywood sheet with zero slippage.
CNC Infeed & Alignment
Gantry traverses and places sheet against CNC positioning pop-up pins.
Auto Sweeper & Outfeed
Cut parts are pushed onto outfeed belt conveyor while fresh sheet loads simultaneously.
Workshop Machinery & Nesting CNC Layout CAD
Raw Board Staging, Nesting & Shuttle Transfer Track • Dimensional layout optimized for high throughput with zero bottlenecks.
Workshop Integration Summary
Floor plan illustrating raw material warehouse staging, 7x CNC nesting routers, automated RGV shuttle rails, and intermediate buffer stations feeding downstream cells.
- ✓ Continuous vacuum gantry infeed
- ✓ Rail-guided shuttle vehicle tracks
- ✓ Compatible with Homag, KDT, Nanxing
Automation ROI & Labor Savings Calculator
Calculate how much your workshop will save by installing Shunxin automated return & handling systems.
